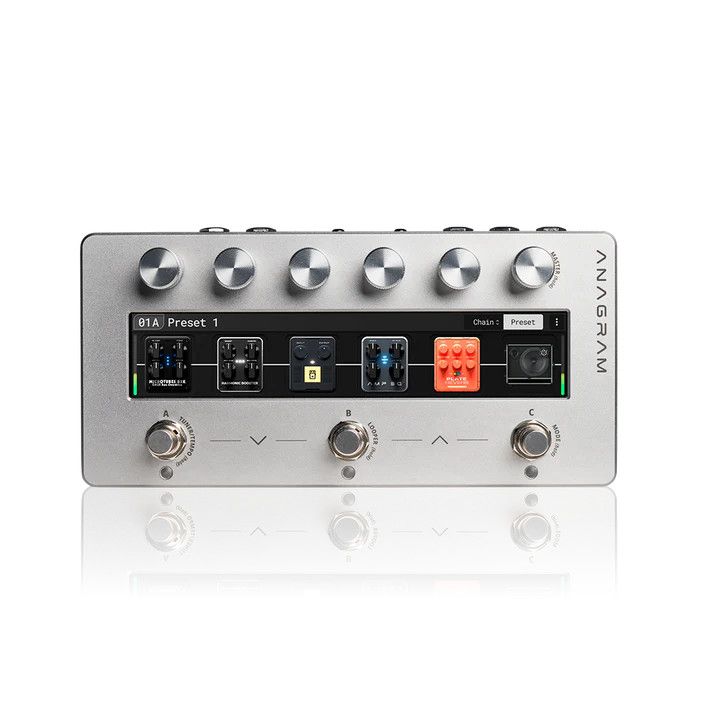

Darkglass Anagram Bass Multi-Effects Unit

Darkglass Anagram Bass Multi-Effects Processor & Amp Modeler

The Darkglass Anagram represents a massive leap forward in low-end signal processing, serving as the ultimate flagship workstation designed specifically for the modern bassist. Melding Darkglass's legendary dirt and preamp heritage with cutting-edge open-source neural modeling, this compact pedalboard platform provides unmatched flexibility, processing speed, and tone-shaping precision for both live stages and studio tracking.

Key Features & Cutting-Edge Architecture:

• Next-Gen Hexacore DSP Engine: Driven by a state-of-the-art, high-speed six-core processor, the Anagram delivers flawless, latency-free audio processing at a premium 32-bit resolution and 48kHz sample rate.
• Massive Signal Chain Complexities: Build expansive structural tone profiles. The canvas allows you to run up to 12 effects blocks simultaneously in series, or up to 24 blocks in parallel—perfect for splitting your clean lows and heavily distorted highs.
• Neural Amp Modeler (NAM) & AIDA-X Integration: Move beyond standard digital approximations. With native support for third-party NAM and AIDA-X neural captures, you can load hyper-realistic, component-level models of coveted tube amplifiers directly onto the pedal.
• Intuitive Touchscreen Workflow: A large 7-inch high-brightness color touchscreen combines with six high-resolution endless rotary push-knobs and three heavy-duty footswitches. Simply drag, drop, and swipe to build custom grids and route blocks on the fly.
• Elite Bass Effects Portfolio: Loaded with over 50 custom-tailored DSP blocks, including pristine compressors (FET, Bus, and the Ignissor multi-band), flexible filters (Gravitron envelope), graphic and parametric EQs, and stunning stereo modulation/reverb/delay engines.
• Advanced Speaker Cabinet Module: Features native cabinet impulse response (IR) loading. Bass cabinets come equipped with 6 virtual microphone options boasting 6 placement positions each, providing complete microphone placement control.
• Comprehensive Output Mixer & Routing: A standalone software mixer section gives you independent volume and level control over your main outputs, featuring a global EQ to tune the entire rig to any room or backline instantly.

Professional I/O Connectivity:

• Dual XLR & 1/4" Main Outputs: Four independent outputs with software-controlled ground lifts allow for true stereo effects processing, sending separate wet/dry channels, or running to an onstage amp while feeding front-of-house simultaneously.
• Dual-Function FX Loop: The 1/4" Send jack can be configured for a stereo send or a mono insert, while the 1/4" Return jack doubles as an expression pedal input for seamless external hardware integration.
• Multi-Power USB-C Interface: Functions as a professional USB audio interface for direct DAW desktop recording. The USB-C port also connects to the Darkglass Suite app for deep firmware updates and asset management, and can even power the pedal via a standard USB-C PD power bank or laptop charger.
• TRS MIDI Support: Independent 3.5mm TRS Type-A MIDI In and Out jacks provide seamless automation across MIDI controllers and studio setups.
• Integrated Utilities: Includes a high-precision onboard tuner (accessed instantly by holding Footswitch A), global tempo control, a built-in looper, and an adjustable 3.5mm stereo headphone out with three distinct gain levels.

Technical Specifications:

• Presets Architecture: 126 Total Presets organized across 42 Banks (3 presets per bank)
• Power Requirements: 9–12V DC center-negative, 1700mA minimum current (9V DC power supply included)
• Dimensions (W x D x H): 210 x 105 x 62 mm / 8.27" x 4.13" x 2.44"
• Weight: 815 g / 1.8 lbs
• Country of Origin: Made in Finland

Whether you need a compact, silent-stage fly rig, a flexible studio preamplifier, or an all-in-one bass workstation that can run highly realistic neural amp models, the Darkglass Anagram packs an unbelievable amount of raw processing muscle into a highly portable, pedalboard-friendly design.
