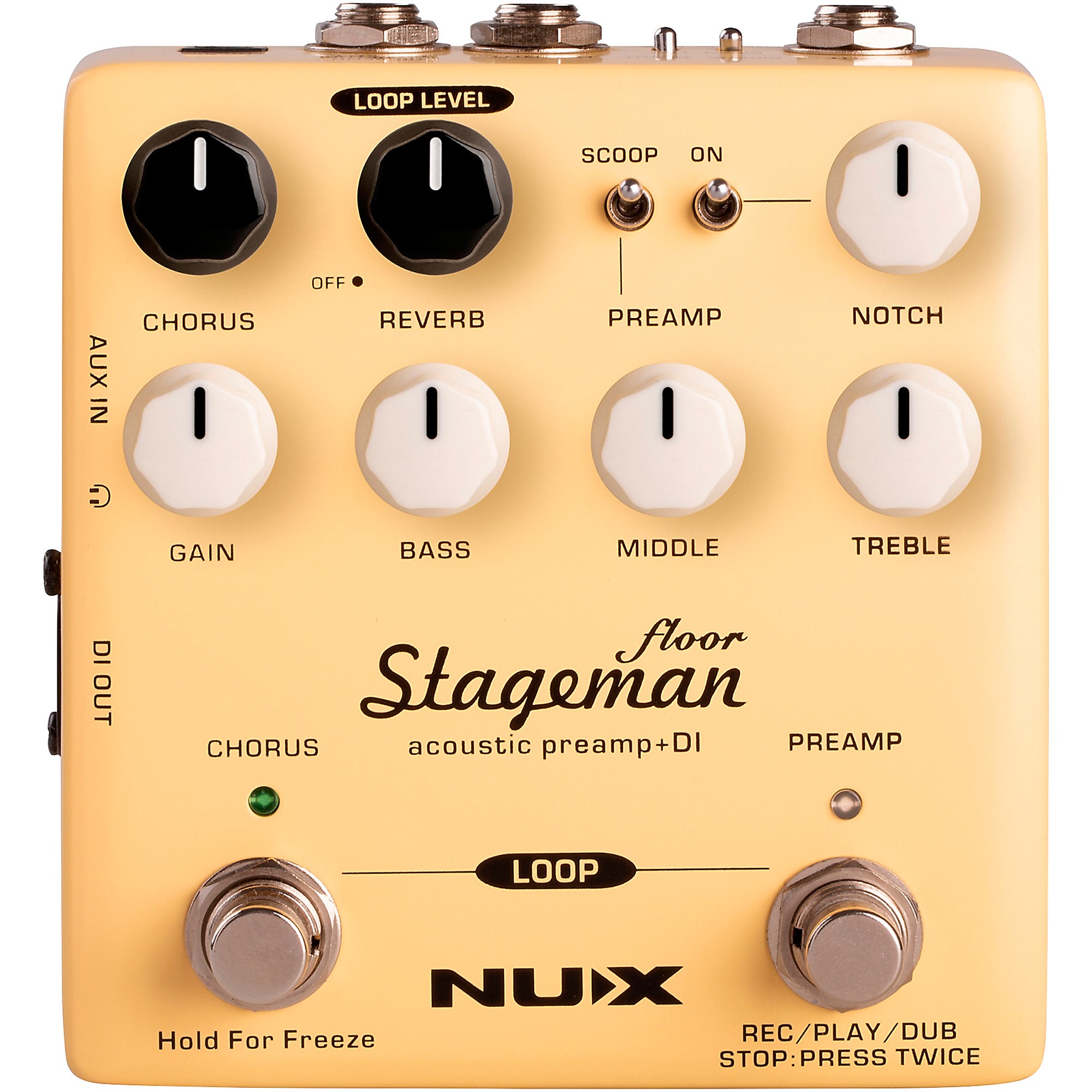

NUX Stageman Floor Acoustic Pre-Amp

The NUX Stageman Floor (NAP-5) is an analog acoustic preamp pedal paired with digital ambient effects and an onboard looper. Designed specifically for acoustic guitarists and multi-instrumentalists (mandolin, violin, banjo), it functions as an all-in-one tone-shaping front-end and DI box for gigging directly into a PA system, full-range monitor, or acoustic amplifier.

Key Specs & Features

• High-Headroom Analog Preamp: Delivers clean gain with natural dynamic range. Includes a Piezo / Magnetic toggle switch to optimize input impedance for your pickup type.
• Tone Shaping & Feedback Control:
  • 3-Band EQ: Dedicated Bass, Middle, and Treble controls.
  • Scoop Toggle: Instantly cuts mid-frequencies to eliminate boxiness and add warmth.
  • Notch Filter: Sweepable frequency control with an On/Off toggle to notch out problematic stage feedback.
• Performance Effects:
  • One-Knob FX: Simple single-knob controls for both Chorus and Reverb.
  • Freeze Effect: Holding down the Chorus footswitch freezes the current audio tail into a sustained drone for backing pads.
• 60-Second Phrase Looper: Pressing both footswitches engages a 60-second looper with unlimited overdubs (controlled via the Preamp footswitch and dedicated Loop Level knob).
• Comprehensive Routing & I/O:
  • Outputs: Balanced XLR DI Out (with Ground Lift switch) and standard 1/4" instrument Out.
  • FX Loop: 1/4" TRS Insert jack for patching external effects into the signal chain.
