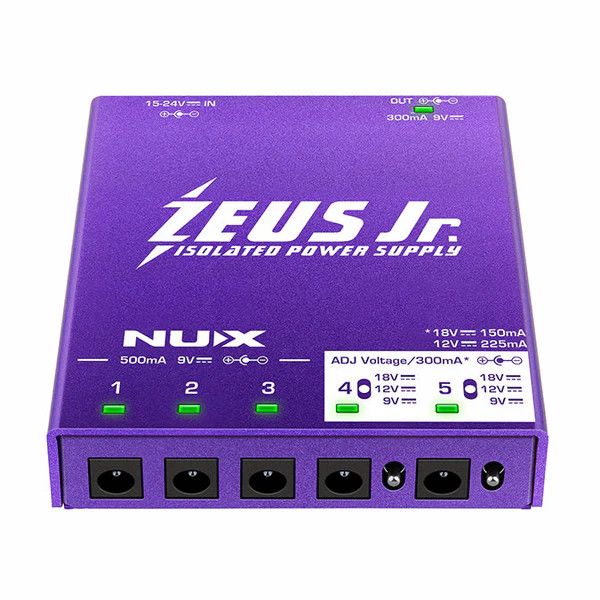

NUX Zeus Jr. power supply

The NUX Zeus Jr 6 Port Isolated Power Supply is a compact and efficient solution for guitarists who need high-current, noise-free power for their pedalboards. Designed to accommodate both modern digital effects and classic analog stompboxes, the Zeus Jr uses fully isolated switching power transformers to eliminate ground loop noise and interference.

Clean and Versatile Power

The Zeus Jr offers six high-current isolated outputs, making it powerful enough for demanding DSP-based pedals like those from Strymon or Eventide. Its configuration includes four fixed 9V outputs (three at 500mA and one at 300mA) and two adjustable outputs. These selectable outputs allow you to toggle between 9V, 12V, or 18V, providing the flexibility to experiment with different voltages for Fuzz or Phaser pedals to find your ideal tone.

Tour-Ready Design

Built for the working musician, the Zeus Jr is ultra-compact and lightweight, allowing it to be easily mounted underneath almost any pedalboard. It features a universal AC power input (100V–240V), ensuring it can be used worldwide without voltage concerns. Each output also includes short-circuit protection, keeping your gear safe even if a cable or pedal fails.

Complete Accessory Kit

The system comes ready to use out of the box, including:

• 6 DC Link Cables (right-angle to straight)
• 1 Reverse Polarity Cable
• 1 3.5mm Mini Plug Cable
• 15V Power Adapter and IEC cable
